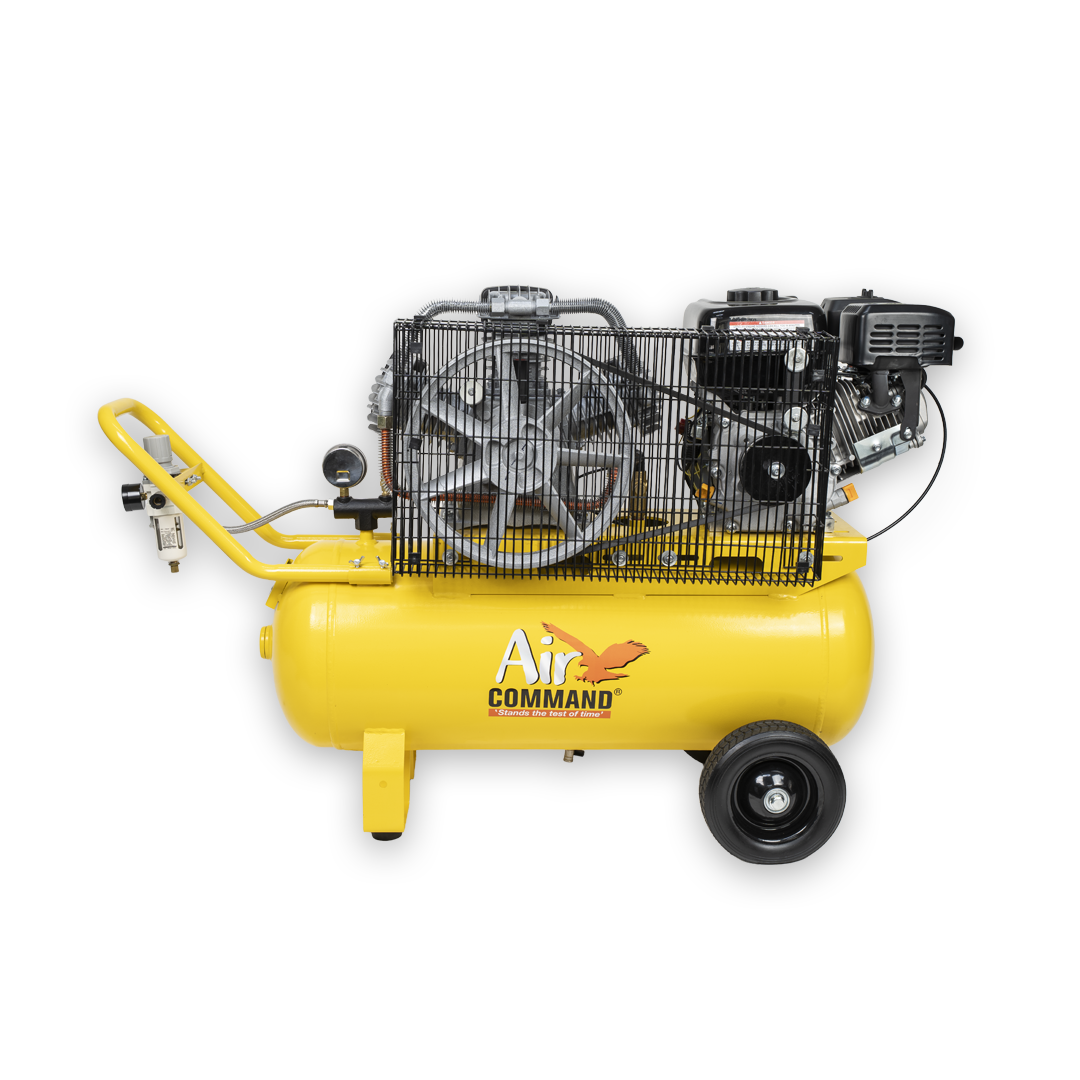

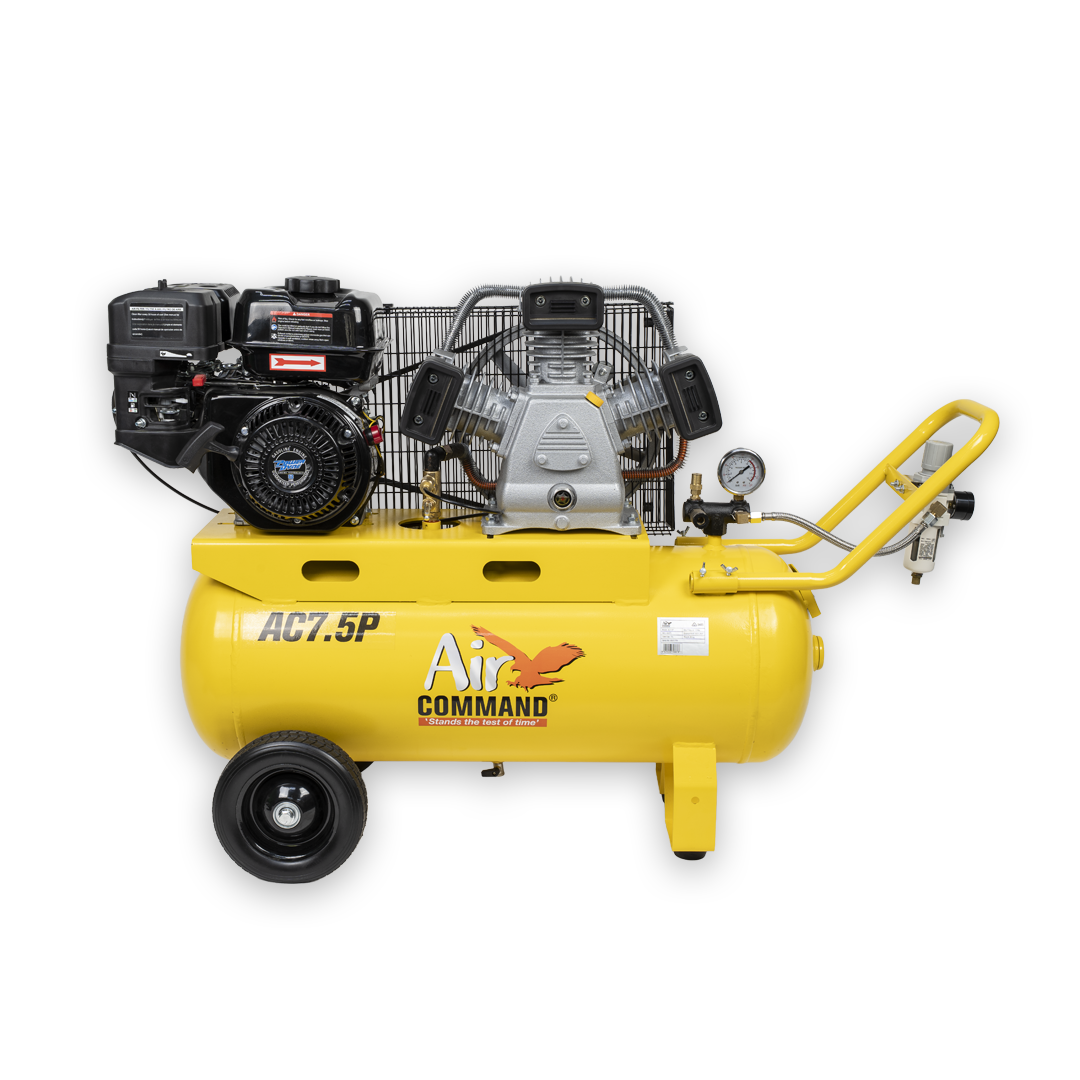

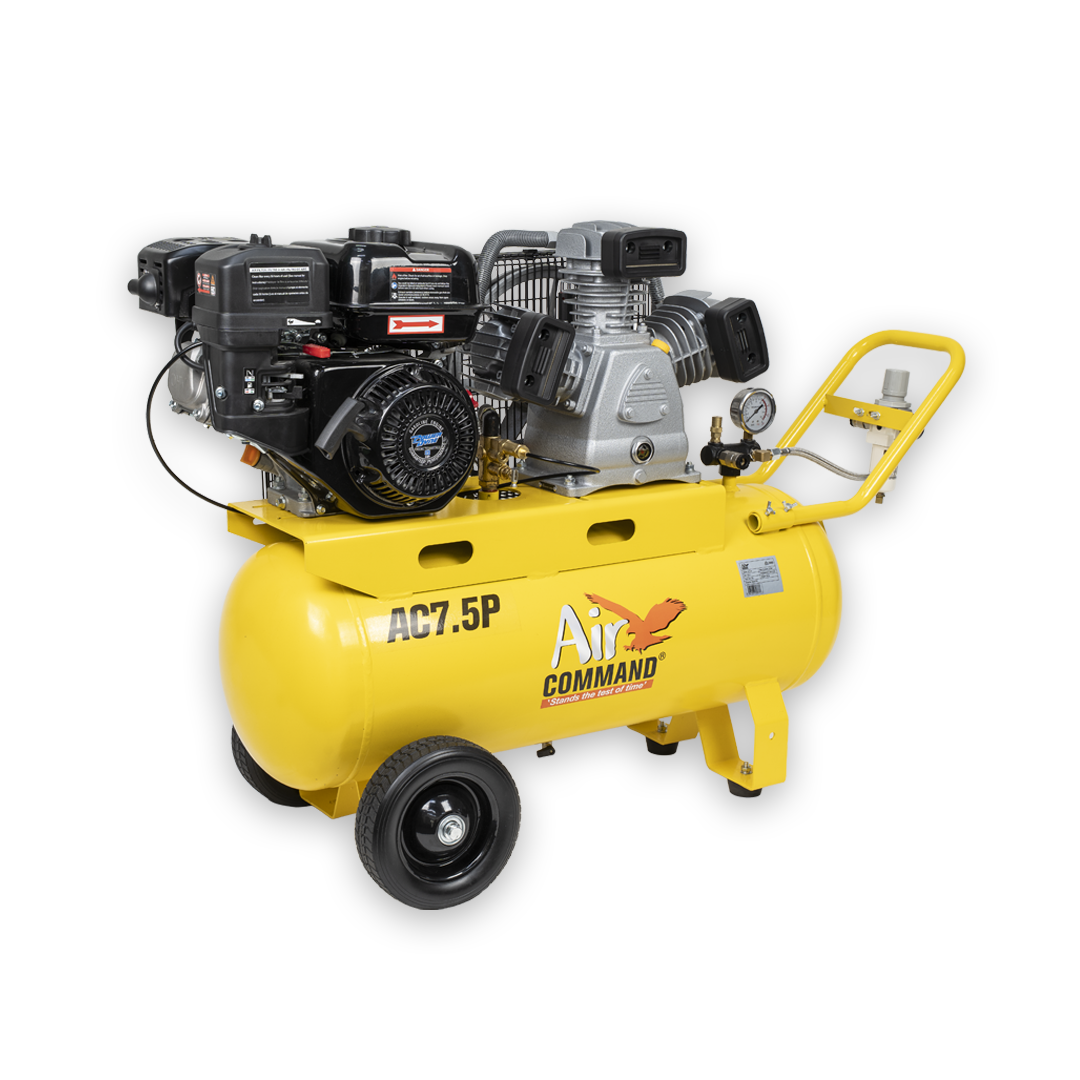

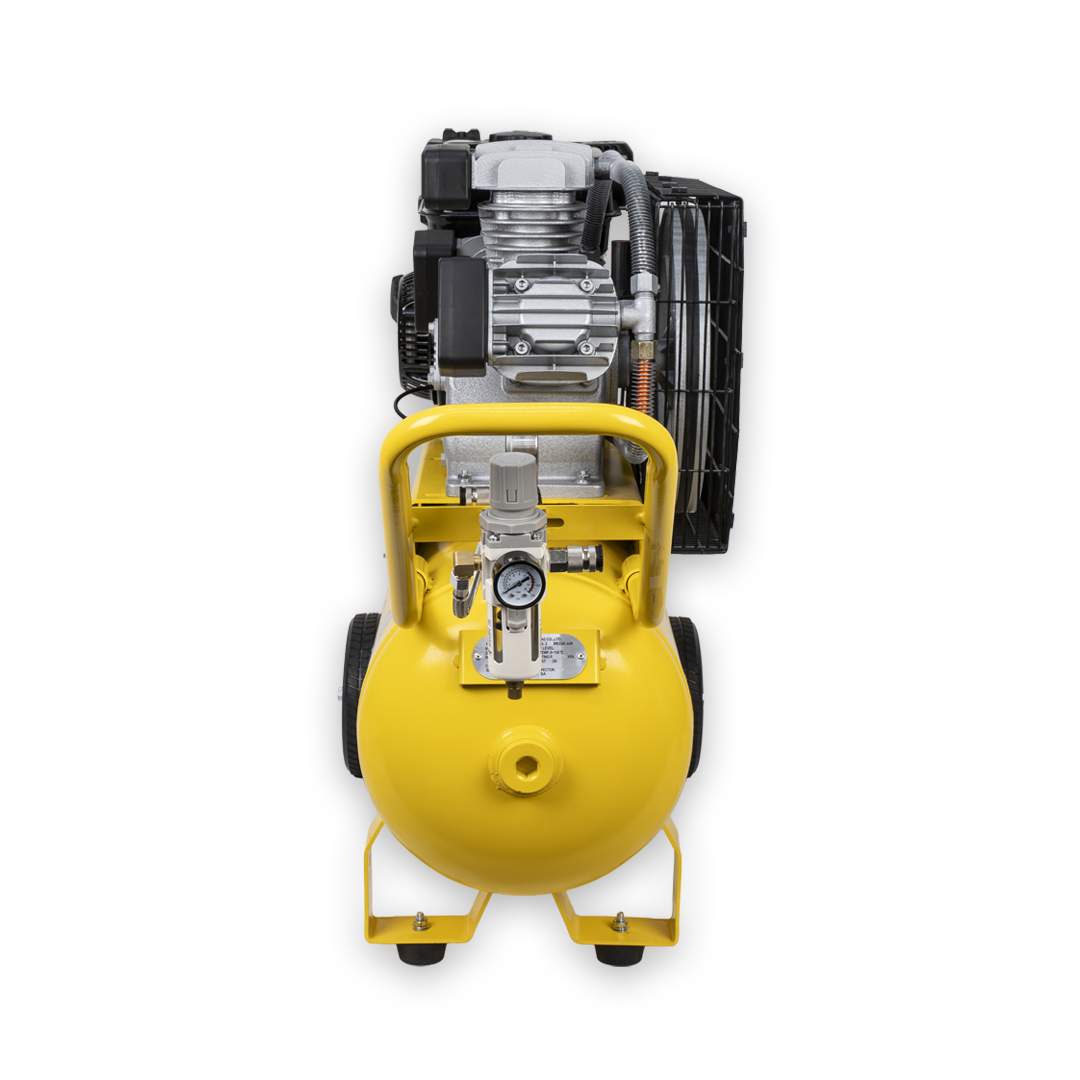

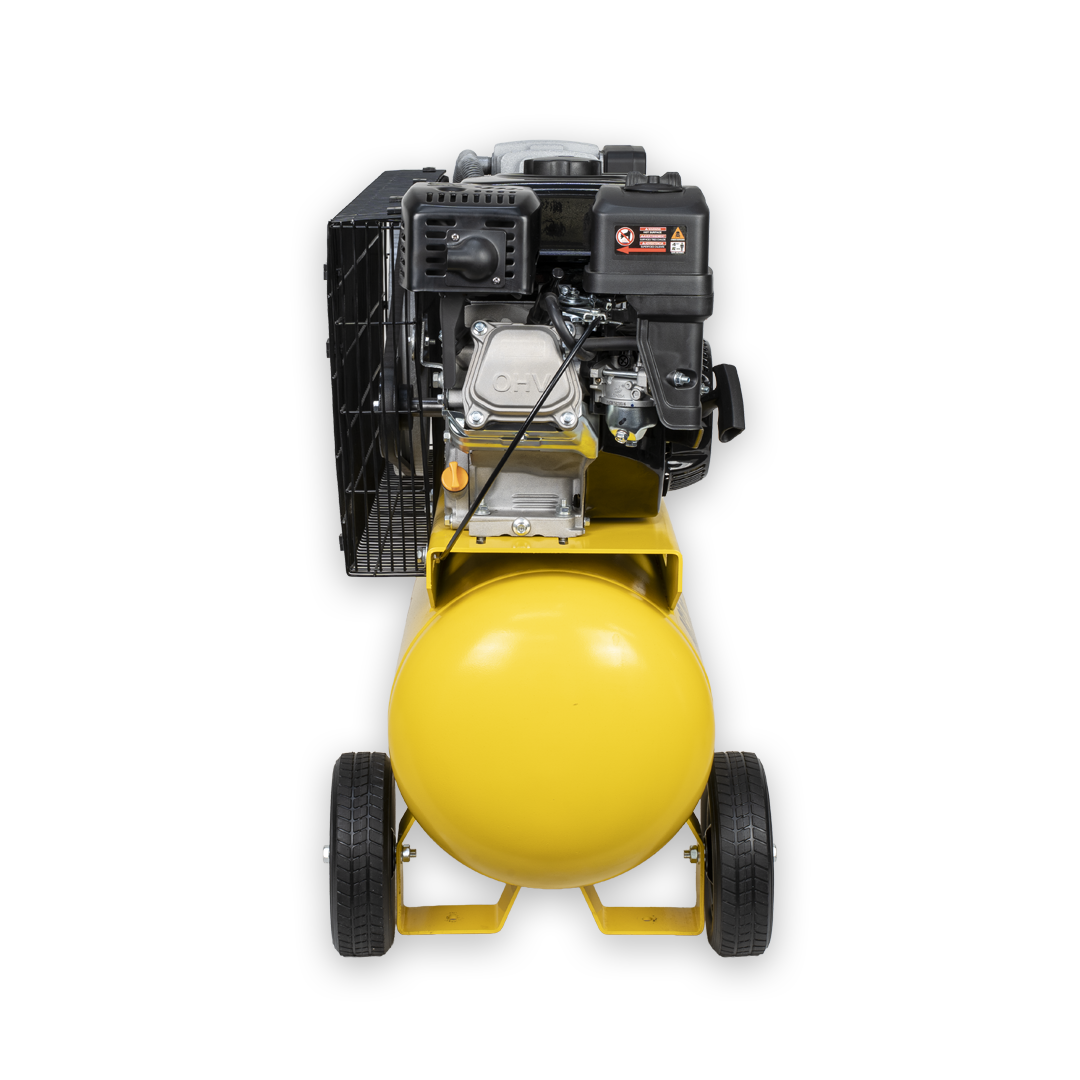

Air Command AC7.5P Mobile Petrol Compressor 70L Tank PDX230 Engine

Heavy-duty petrol air compressor delivering reliable high airflow for workshops and on-site use. Portable 70L tank design powers multiple tools with ease, improving productivity in demanding trade environments.

SKU: 42471

Product Overview

Air Command AC7.5P Mobile Petrol Compressor 70L Tank PDX230 Engine

The Air Command AC7.5P petrol air compressor is a heavy-duty, mobile air solution built for workshops, contractors, and trade professionals who need dependable compressed air in demanding environments. Powered by an 8HP Powerdyne 4-stroke engine, it delivers strong airflow to run multiple pneumatic tools efficiently. With a robust cast iron pump and portable 70L tank, it’s designed for durability, performance, and flexibility across job sites and workshop applications.

Key Features

Powerdyne 8HP Petrol Engine
Driven by a proven 8HP 4-stroke Powerdyne engine, this compressor offers reliable starting and consistent output. It delivers the performance needed to keep tools running smoothly across extended work periods.

Heavy-Duty Cast Iron Pump
The V-twin 3-cylinder cast iron pump is built for durability and continuous use. It handles demanding workloads while maintaining consistent airflow, making it ideal for tough workshop and site conditions.

High Airflow Performance
Producing up to 552 L/min (19.5 CFM), the AC7.5P delivers strong airflow for operating multiple tools at once. This improves efficiency and reduces downtime on busy job sites.

Portable 70L Tank Design
The large-capacity 70L tank combined with solid wheels allows easy movement around site or workshop. It provides ample air storage while maintaining portability for flexible use.

Automatic Idle Control System
The Conrader pneumatic idle control reduces engine speed when not under load. This lowers fuel consumption, minimises noise, and reduces wear, extending overall machine life.

AS1210 Certified Air Tank
The certified pressure vessel ensures compliance with safety standards, giving confidence for site use while supporting long-term durability in industrial environments.

Key Features

Powerdyne 8HP Engine
552 l/min 19.5 cfm Pump Displacement
Cast Iron 'V' 3 Cylinder Single Stage

Technical Specifications

Specifications -
Dimensions1100 x 450 x 820mmWeight95kg
Pump TypeHeavy Duty Cast Iron 'V' 3 Cylinder Single StageEnginePowerdyne 8HP
Pump Displacement552 l/min 19.5 cfmFAD @ 0 psi502 l/min 17.7 cfm
FAD @ 7 bar307 l/min 10.8 cfmMax Pressure145psi 10 bar
Pump Speed (RPM)1050 rpmFuel Tank Capacity3.6L
Pump Oil Capacity1LDrive Belt SpecificationA1346
Air Outlet2x 1/4" Aro Type Quick ConnectSound Pressure Level72 dBa
Power SourcePetrolPump Displacement19.5cfm, 552 l/min
Tank Capacity (L)70Free Air Delivery10.8cfm, 307L/min
